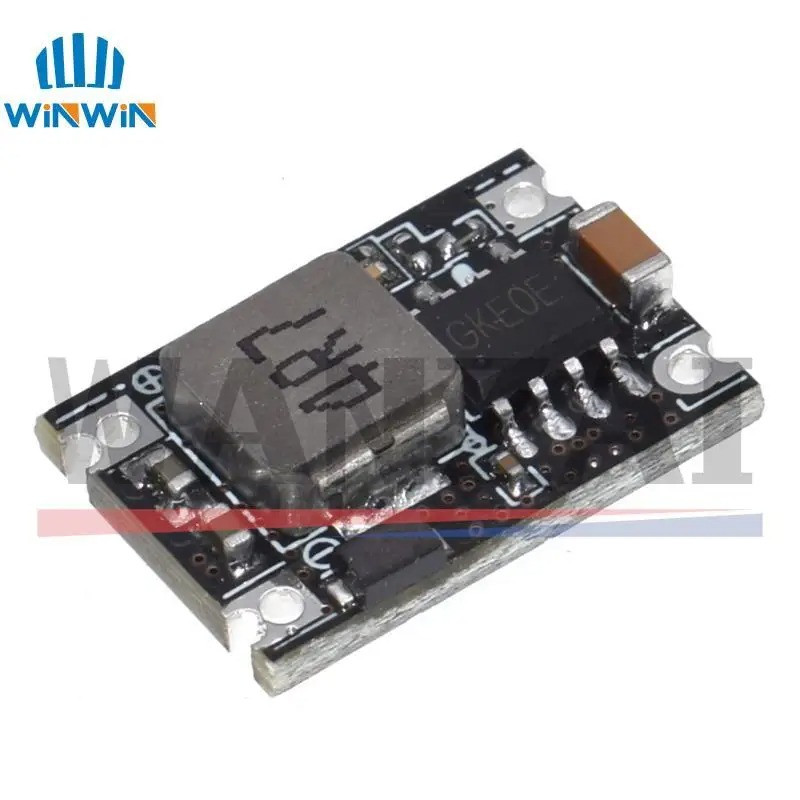

High-efficiency 3A mini buck converter. Steps down 5V-30V input to a stable 3.3V output. Ultra-compact design, ideal for IoT, cameras, and DIY electronics projects where space is limited. Reliable power regulation with up to 96% efficiency.
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
| Feature / Karakteristika | Specification / Specifikimi |
| Input Voltage / Voltazhi i Hyrjes | 5V - 30V DC |
| Output Voltage / Voltazhi i Daljes | 3.3V DC (Fixed) |
| Output Current / Rryma në Dalje | 3A (Max) |
| Efficiency / Efikasiteti | Up to 96% |
| Dimensions / Përmasat | 17.5mm x 12mm x 4.3mm |
| Protections / Mbrojtjet | Input Undervoltage & Overvoltage |
| Operating Temp / Temp. e Punës | -40°C to +85°C |
Ky modul mini DC-DC step-down është projektuar për besueshmëri dhe performancë të lartë. Pavarësisht përmasave të tij tejet të vogla (17.5mm x 12mm), ai ofron një dalje të fuqishme prej 3A me efikasitet deri në 96%. Përfshin mbrojtje të integruar ndaj mbivoltazhit dhe nënvoltazhit, duke garantuar sigurinë e pajisjeve tuaja elektronike. I shkëlqyer për të ushqyer mikrokontrollorët 3.3V (si ESP8266 ose sensorë) nga bateri ose burime me voltazh më të lartë.
Përdorimet Kryesore:
Sensorë IoT dhe projekte me NodeMCU/ESP8266.
Power bank DIY dhe karikim pajisjesh portative.
Pajisje komunikimi dhe modele aeroplanësh (RC).
Rregullator voltazhi në makina për pajisje të vogla.
