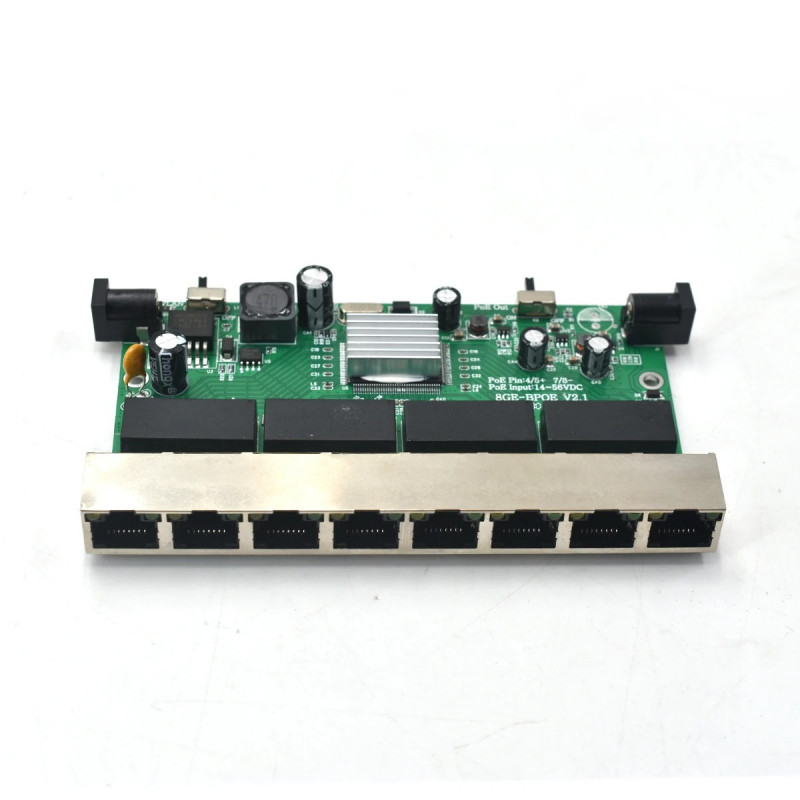

8-Port Gigabit Reverse PoE Switch PCBA (10/100/1000M, VLAN Support)

IOT-SW-RPOE8G-PCBA

8-Port Gigabit Reverse PoE Switch board. Ports 1-7 receive PoE input to power the switch, passing power to Port 8 (PoE out) or the 12V/5V DC jacks. Features 1-click VLAN isolation. Perfect for FTTH, WISP, and powering roof/attic network gear.

4,800 Lek
2-3 days
Quantity
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description
Feature Specification
Reference Code IOT-SW-RPOE8G-PCBA
Model Number WOR-SYGP-08P
Chipset Realtek
Ports 8x 10/100/1000Mbps RJ45
Reverse PoE Input Ports 1-7 (Receives power via idle wires 4/5+, 7/8-)
PoE Output Port 8 (Outputs power via 4/5+, 7/8-)
DC Voltage Output 12V / 1A and 5V / 1A (via 2 separate DC jacks)
Input Voltage Range 15V - 48V DC
Hardware Switches 1x One-click VLAN physical isolation, 1x Port 8 Power output switch
Network Features 4K MAC address table, Jumbo frames up to 9K bytes
Application FTTH, FTTB, FTTX Networks
Certifications CE, FCC, RoHS

The Wanglink 8-Port Gigabit Reverse PoE Switch (PCBA) is engineered to solve complex power delivery challenges in FTTx, WISP, and complex building networks. Unlike standard switches that require a dedicated local power adapter, this "Reverse PoE" model is powered by the end-users. Customers supply power from their homes or offices into Ports 1 through 7 using standard PoE injectors.

The switch aggregates this incoming power to operate itself, and then intelligently forwards the remaining power to Port 8 (PoE Output) or the dedicated 12V/1A and 5V/1A DC jacks. This makes it an incredibly cost-effective and efficient solution for powering upstream backbone equipment—such as an ONU, a MikroTik distribution router, a wireless point-to-point antenna, or Dahua CCTV IP cameras—located in attics, corridors, or rooftops where electrical outlets are unavailable. It also features a physical one-click VLAN isolation switch to secure client traffic and a dedicated switch to toggle the Port 8 power output.

Product Details
IOT-SW-RPOE8G-PCBA
1 Item
